MEDICAL Chamber

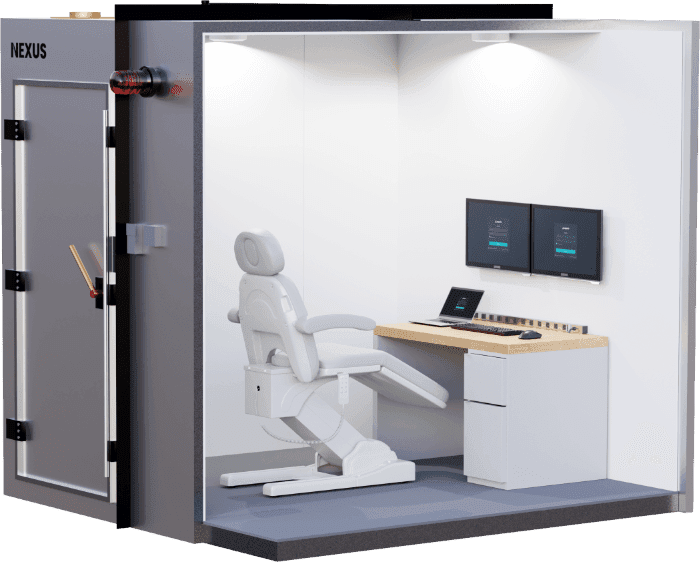

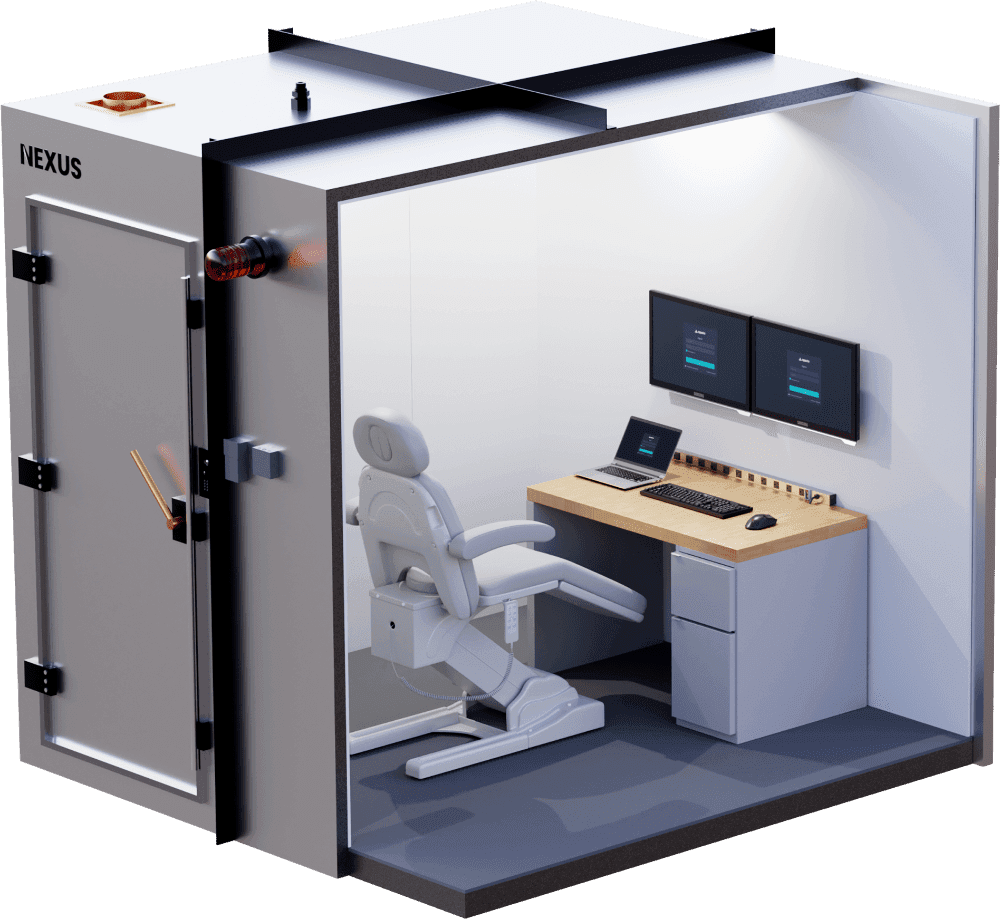

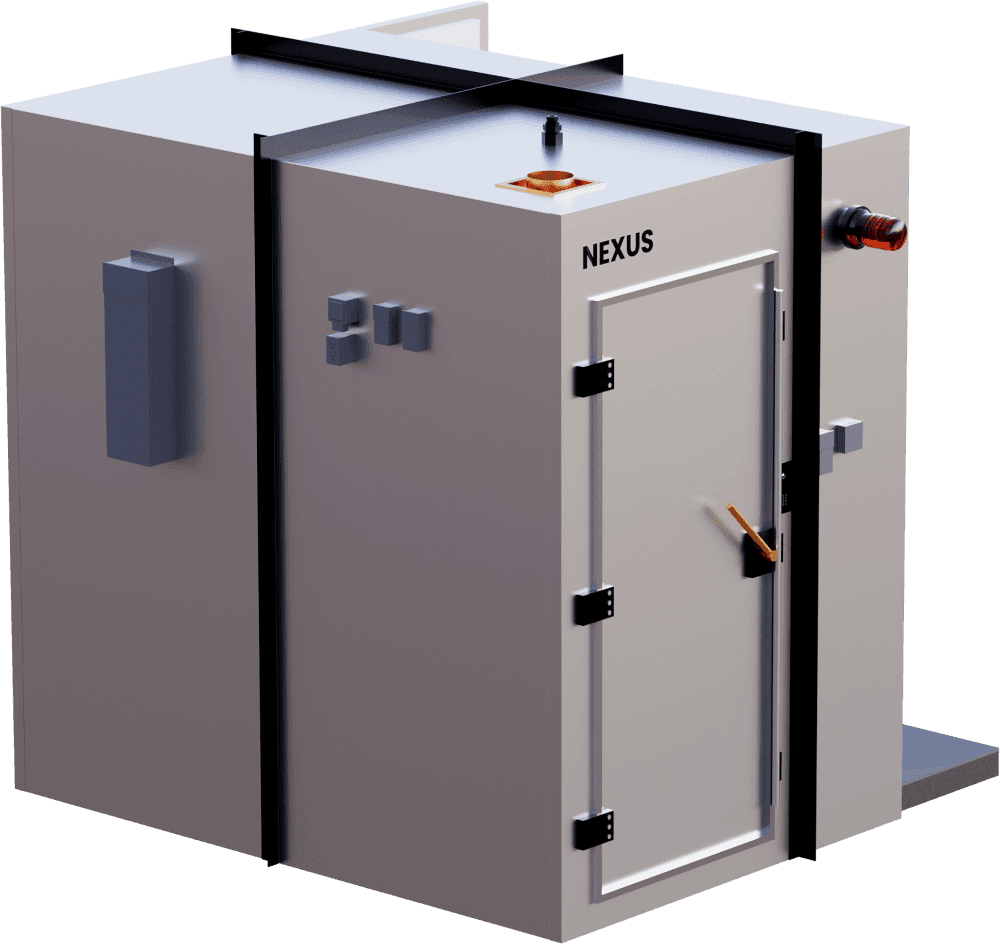

EEG Shielded Room

NEXUS CLASS

To perform an Electoencephalogram (EEG) test without the risk of interference and ambient background noise, shielding is required. This helps protect the highly sensitive test equipment inside the room from external interference. It also provides a stable and repeatable testing environment. Our EEG testing room can be installed in any medical facility or university. They are constructed with a high magnetic permeability shield for optimal performance. Each chamber is fitted with lighting, air conditioning, and EMI filtered cabling. Soundproofing is also available if necessary.Quote

View Data Sheet

Download Data Sheet

Specifications

• ECG mains frequency field limits: 400nT p-p or 4mG p-p

• EEG mains frequency field limits: 200nT p-p or 2mG p-p

• Typical External Dimensions: 2.5m (L) x 2m (W) x 2.3m (H)*

• Typical Internal Dimensions: 2.4m (L) x 1.9m (W) x 2.2m (H)

• Shielded Pedestrian Door: 1m (W) x 2m (H)

• Floor Loading: 250Kg/M²

• Power Distribution: 4 x 230V AC DSSO Sockets.
